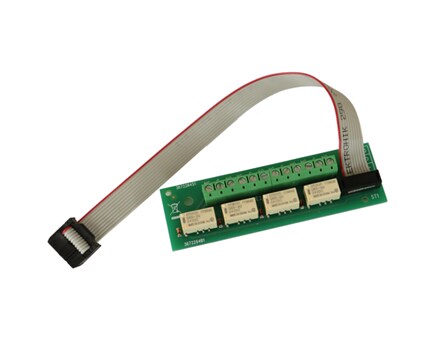

Moduł przekaźnikowy RL04-1

L210190

Moduł przekaźnikowy RL04-1 stosowany jest w centralach sygnalizacji pożarowej serii BC08. Umożliwia sterowanie urządzeniami zewnętrznymi oraz przekazywanie poleceń i informacji systemowych. Wyposażony jest w cztery niezależne przekaźniki z galwanicznie izolowanymi stykami przełącznymi wyprowadzonymi na zaciski.

Cechy i zalety
Dane Techniczne
Akcesoria
Dokumenty

4 niezależne wyjścia przekaźnikowe
Suche styki przełączne
Instalacja w centrali sygnalizacji pożarowej serii BC08

Maksymalna moc przełączania	82 A przy 30 VDC; 0.5 A przy 125 VAC
Zaciski śrubowe – maksymalny przekrój przewodu	1,5 mm2
Typowy pobór prądu	22 mA przy 24 V, na każde aktywowane przekaźnikowe wyjście
Temperatura otoczenia	-5°C do +50°C
Wymiary D × S × W	90 × 25 × 12 mm
Waga	45 g
