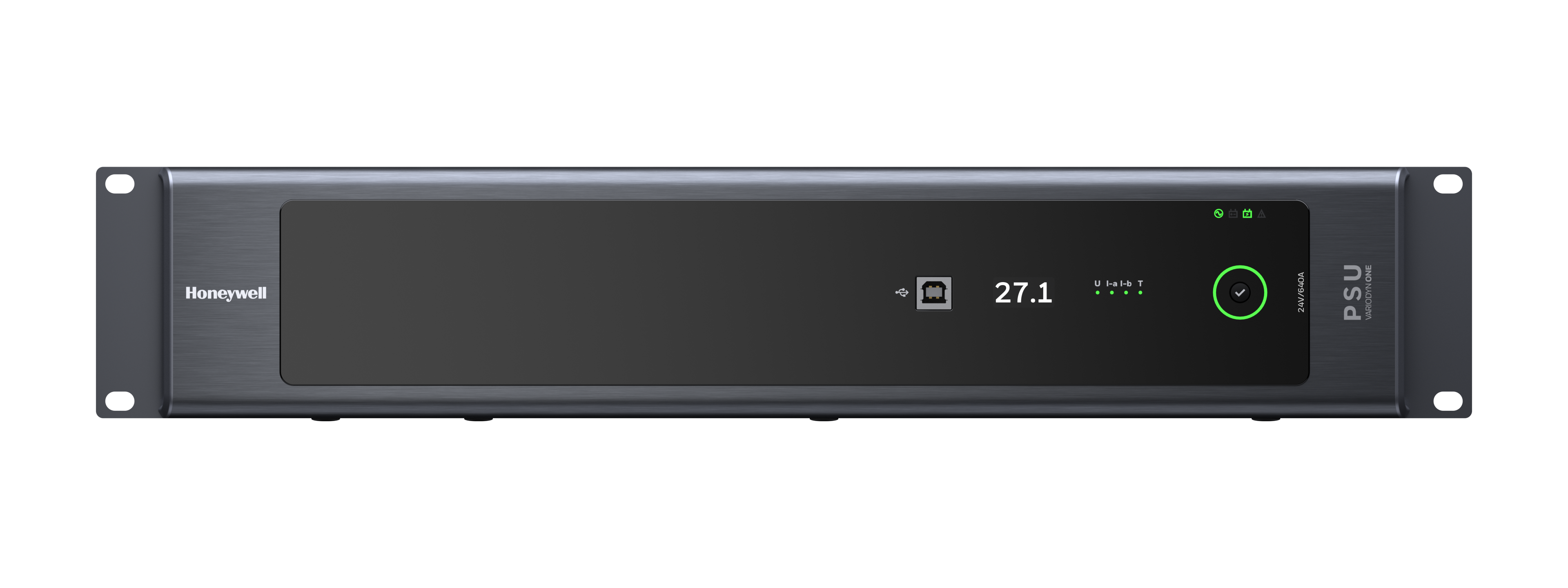

VPS-2-640A

585053

Approval: EN 54-4

The VARIODYN ONE VPS power supply is demanded to operate as battery charger and supervision system for external batteries providing backup voltage 24 VDC, according to the standards EN 54-4 + A1 + A2. This version supports 11 amplifier- and 8 AUX outputs with overall 640 A output current.




• Space saving solution
• Battery capacity up to 810 Ah
• Monitoring of battery charging current and status
• USB digital communication for servicing
• Simple and convenient installation
• Certified to EN 54-4


Power Input

230 / 115 V 50 / 60 Hz

Overcurrent protection at the OUT outputs

5 x 75 A, 6 x 40 A

Max total number of power amplifiers

5 x 2000 W, 6 x 1000 W

Overcurrent protection at the AUX outputs

4 x 8 A, 4 x 4 A

Max total current at the AUX outputs

2 x 15A

Max number of battery banks @ 24V

3

Floating voltage @ 25°C

27,1 V

Max total capacity of the external battery for 230V/115VAC

810 / 720 Ah

Max charging current for 230V/115VAC

36 / 30 A

Max resistance of a single battery circuit

65 mΩ

Dimensions (H x W x D)

88 x 483 x 336 mm

Weight

7,8 Kg



581730 Battery for emergency power supply 12 V / 105 Ah
581731 Battery for emergency power supply 12 V / 150 Ah
581733 Battery for emergency power supply 12 V / 210 Ah
585063 19" mounting set with cutout for fuse holder and circuit breaker
