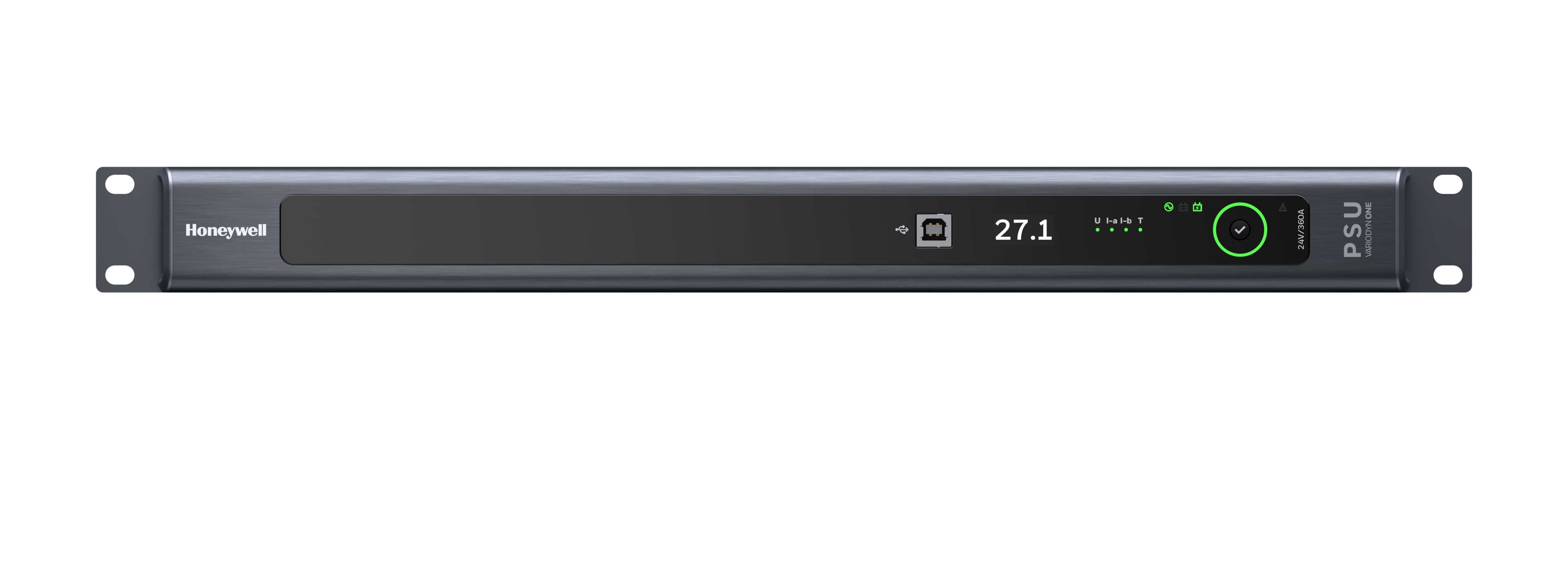

VPS-1-360A

585052

Approval: EN 54-4

The VARIODYN ONE VPS power supply is demanded to operate as battery charger and supervision system for external batteries providing backup voltage 24 VDC, according to the standards EN 54-4 + A1 + A2.This version supports 6 amplifier- and 4 AUX outputs with overall 360 A output current.




• Space saving solution
• Battery capacity up to 400 Ah
• Monitoring of battery charging current and status
• USB digital communication for servicing
• Simple and convenient installation
• Certified to EN 54-4


Power Input

230 / 115 V 50 / 60 Hz

Overcurrent protection at the OUT outputs

3 x 75 A, 3 x 40 A

Max total number of power amplifiers

3 x 2000 W, 3 x 1000 W

Overcurrent protection at the AUX outputs

2 x 8 A, 2 x 4 A

Max total current at the AUX outputs

15A

Max number of battery banks @ 24V

2

Floating voltage @ 25°C

27,1 V

Max total capacity of the external battery for 230V/115VAC

400 / 350 Ah

Max charging current for 230V/115VAC

18 / 15 A

Max resistance of a single battery circuit

65 mΩ

Dimensions (H x W x D)

43 x 483 x 336 mm

Weight

5,3 Kg



581730 Battery for emergency power supply 12 V / 105 Ah
581731 Battery for emergency power supply 12 V / 150 Ah
581733 Battery for emergency power supply 12 V / 210 Ah
585063 19" mounting set with cutout for fuse holder and circuit breaker

585301 8 Channel amplifier output cable
585302 4 Channel amplifier output cable
585303 2 Channel amplifier output cable
585304 1 Channel amplifier output cable
585305 Amplifier backup cable - 1 channel, 0.5m
585306 Amplifier backup cable - 2 channel
585307 Amplifier backup cable - 4 channel
585305.01 Amplifier backup cable - 1 channel, 2m
