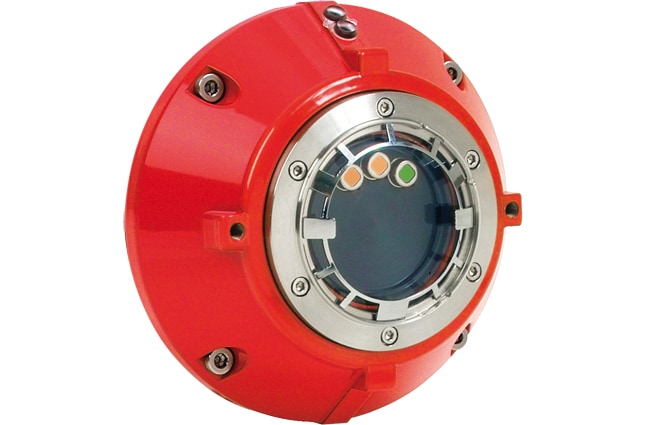

Czujka płomienia ESSER UniVario 3IR, klasa 1

782315

UniVario 3-kanałowa czujka płomienia IR ESSER działająca w podczerwieni służy do rozpoznawania szybko rozwijających się pożarów z powstawaniem płomieni. Czystość szybki czujki podczerwieni jest cały czas monitorowana. Detektor osiąga wysoki poziom odporności na zjawiska zakłócające dzięki analizie w trzech pasmach w podczerwieni. Zasilanie i podłączenie do systemu sygnalizacji pożaru Esser następuje bezpośrednio przez moduł esserbus® do czujek Univario (808623.10). Detektor jest również resetowany bezpośrednio przez moduł esserbus (808623.10).

Cechy i zalety
Dane Techniczne
Akcesoria
Dokumenty

Direct linking and voltage supply via standard detector group at the esserbus transponder (Part No. 808623.10)
Base installation and alignment via mounting bracket (Part No. 783312)
3-channel infrared flame detector
High level of protection against disturbance variables thanks to optimized hardware and development of special algorithms
Maximum level of response sensitivity according to EN54-10, Class 1
Each optical channel has separate functional monitoring
Easy testing with magnet via integrated reed switch

Additional Information:
Detector base and mounting bracket are not supplied!

Prąd alarmu @ 9 V DC	typ. 15 mA
Napięcie robocze	9 V DC
Kolor	czerwony, podobny do RAL 3000
Obudowa	odlew aluminiowy
Waga	około.991 g (wraz z podstawą czujki i uchwytem)
Temperatura przechowywania	-40 °C ... 85 °C
Wilgotność powietrza	0 ... 95 % (non-condensing)
Prąd spoczynkowy #4	około. 2.3
Rodzaj ochrony	IP67
Obszar monitorowany	max. 676 m²
Wysokość monitorowana	max. 45 m
Temperatura otoczenia	-20 °C ... 80 °C
Wymiary	Szer:130 mm W:140 mm Głęb:92 mm

Typ	Nazwa	Rozmiar
Karty katalogowe
	Czujka płomienia IR ESSER Univario 782315 Wersja: 07.2016	463 KB
