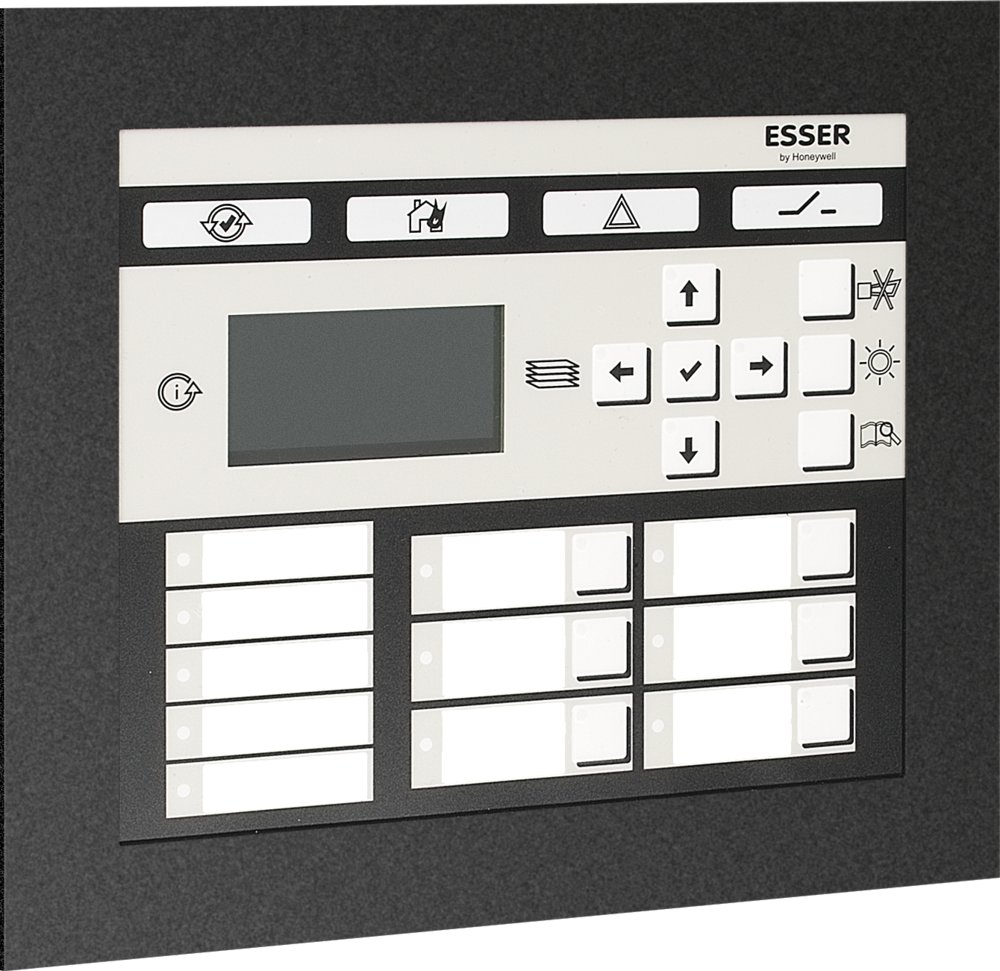

Repeater panel GMT 4000 for FlexES Control and IQ8 Control, flush mounted

FX808463

The repeater panel GMT 4000 is a parallel display and control unit for the FACP FlexES Control and IQ8 Control. Individually programmable control buttons and LED indicators guarantee remote display and operation adapted to the property-protection objective. Capacitive buttons allow for ergonomic operation and querying of system states. The plain text display of the system status via a graphics-capable, six-line display, with 20 characters per line. Operation functionality may be limited with IQ8 Control FACP.
  • Connection to RS485 or TTY interface (depending on FACP)
  • Capacitive control panel
  • Optional for non-redundant or redundant connections
  • Graphic display with 6 lines of 20 characters each
  • Additional text is transferred from the FACP
  • 4 buttons for operating the display (scroll up/down, slide right/left)
  • 3 buttons for operating the buzzer: off, test, and history
  • 1 button to confirm selection for special functions
  • 4 LED common displays (operation, alarm, fault, shutdown)
  • 6 programmable buttons for macro operation that control a configurable series of operating procedures, e.g. Detector Zone-1 to Detector Zone-10
  • 5 programmable individual displays
  • Acoustic signaling
  • History function
  • Max. 16 devices (depending on interface and FACP)

Additional Information:

GMT 4000 Display languages: German, English, Dutch, Spanish, Portuguese-Brazil, French, Romanian, Russian Programming Software "Prog4000": German, English, Spanish, Portuguese-Brazil, French, Romanian, Russian

Operating voltage 10 ... 30 V DC
Current consumption @ 24 V DC approx. 21 mA
Color gray, similar to RAL 7024
Dimensions W: 263 mm H: 210 mm D: 61.5 mm
784716 - ADP 4000 redundancy adapter
784870 - Module with RS232 interface
784871 - Module with RS422/RS485 interface
784872 - Module with interface M4-TTY undefine
