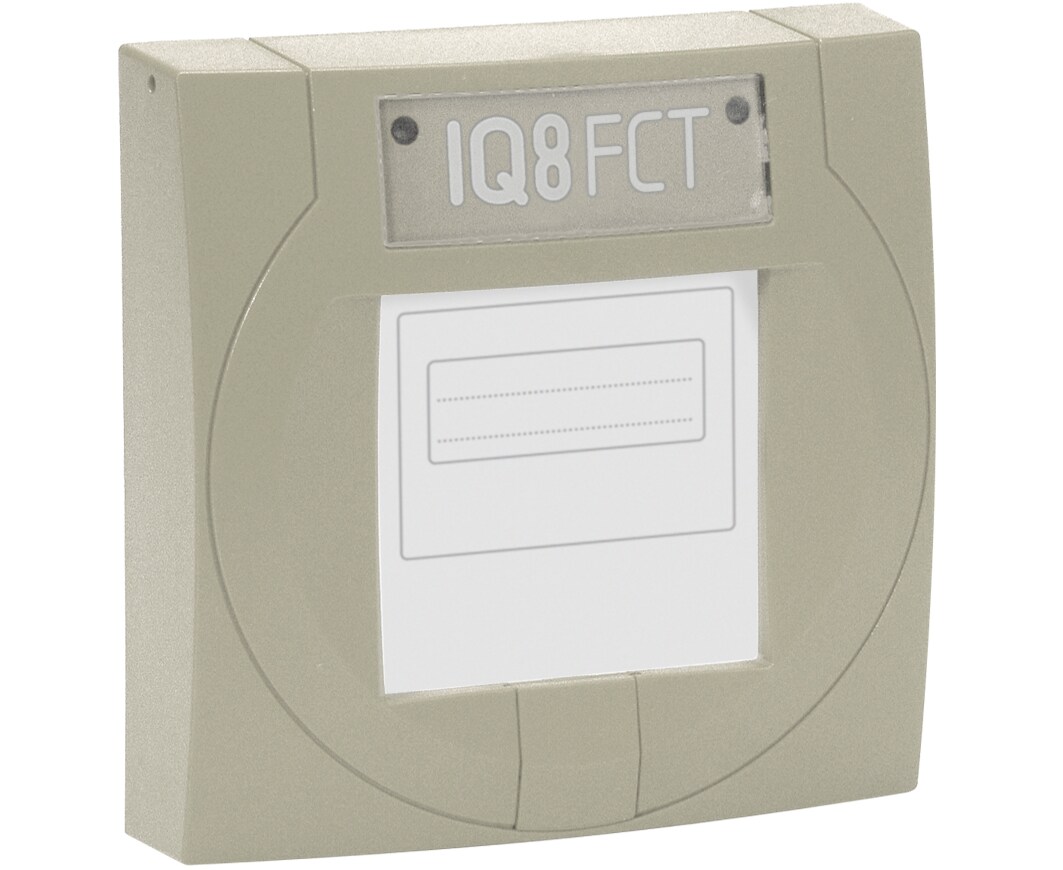

IQ8FCT with isolator, 1 contact IN/1 OUT

804867

Approval: VdS

As IQ8TAL 804868, but with additional FCT software functionality.
  • Runtime monitoring
  • Monitoring 2 states with one input
  • Steady or impulsive triggering of relay output
  • Max. 127 IQ8 FCT transponders per loop

Additional Information:
Please note that for surface mounting, the mount housing (Part No. 704985) must be ordered separately. The IQ8FCT cannot be operated on the following systems: FACP 80, System 3000 (FACP 3007/3008), FACP 8008, FACP 8000 C/M, Extinguishing System 8010
CE certificate0786-CPD-20792
Colorgray, similar to RAL 7035
Weight gapprox. 110 g
Storage temperature-30 °C ... 75 °C
Air humidity< 95 % (non-condensing)
Type of protectionIP 43, IP 55 with cover 704965
SpecificationEN 54-18 / -17
  • 704965 Protective kit for MCP and TAL, transparent
  • 704981 Surface mount housing for small MCP and TAL, blue

Karty katalogowe

TypNazwaRozmiar
Esserbus transponder FCT 24V / 230V ENG Version: 09.2011 ENG 748 KB
