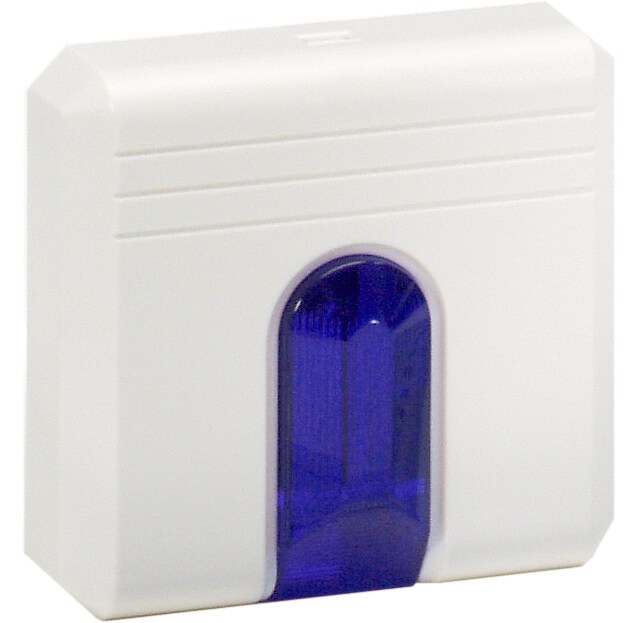

Remote indicator for detector series 9200 and IQ8Quad, blue lens

801825

Blue prism is illuminated by 4 pulsed LEDs to optimize energy consumption. Connection via 3/4-wire cable to detector socket. For special applications such as indication of assaults on jailers in any prison cell of penitentiaries and correctional facilities.
  • 4 pulsed LEDs
  • Power-saving compact indicator
  • Shapely, light-weight and compact design
  • Prism with all around 180° visible LEDs with a wide area of illumination and high on/off contrast

Additional Information:
Cable length of the remote indicators to detector base or voltage supply max. 100 m.
Automatic Fire Detectors series 9200 / IQ8Quad
  • Standard detector base Part. No. 781590 or base Part. No. 801593 required for series 9200 detectors
  • Standard detector base Part. No. 805590 required for series IQ8Quad detectors
  • Max. 3 indicators per detector / max. 2 detectors per indicator
  • Max. 103 remote indicators per analog loop
  • Do not connect remote indicator to detector base Part. No. 781593
  • Cable length to detector base or voltage supply max. 100 m
