VSN-RP1r-Plus

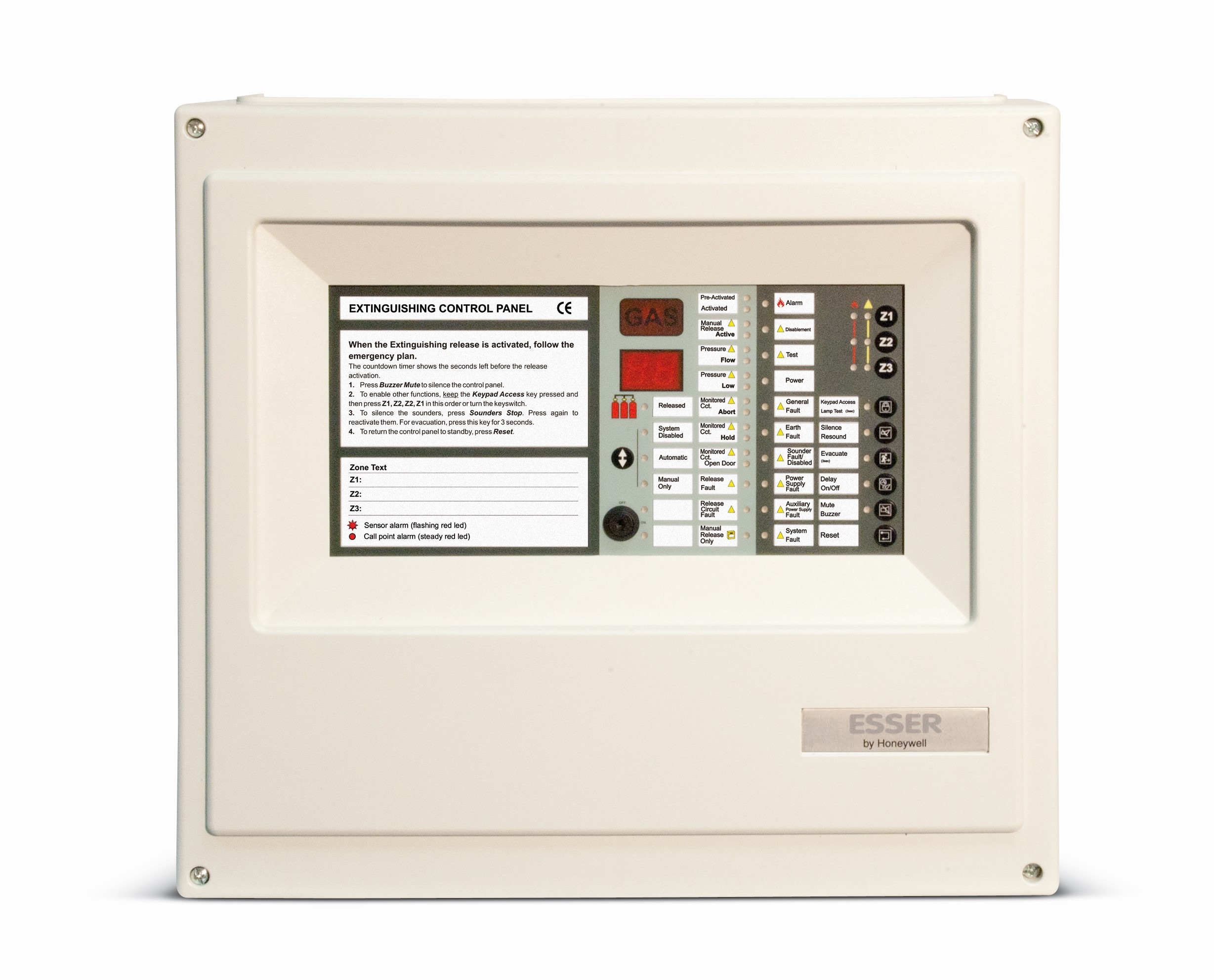

The VSN-RP1r+ extinguishing control panel has been designed to efficiently manage the automatic release sequence of any extinguishing system of gas or CO2 (according EN12094:1/2003 requirements).

Features & Benefits
Technical Data
Accessories
Documents

• Compact extinguishing control panel with 32 bits microprocessor.
• Easy configuration from the keyboard
• 3 conventional zones: 2 for detectors and a third one which can be configured for detectors or call points.
• Inputs for abort and gas release call points and hold pushbutton.
• Release delay which can be configured from 0 to 60 sec. and verification time (before activating the sounders) from 0 to 10 min.
• Delays can be disabled from the keyboard (optional).
• Input circuits for flow and low pressure and open door monitoring.
• Two release circuits. The second one can be used independently for preactivation.
• Countdown timer display which indicates the seconds left for release.
• 44 status leds to quickly identify events.
• 7 relays for status indication and operating mode.
• Operating mode: Automatic, Manual and Disabled.
• Digital input for remote action such as: system reset, evacuation, silence or delay on/off.
• Plug-in terminals for all connections.
• Software for status visualization from the PC with remote connection option.
• Certified according to EN54-2/4:A2/2006 and EN12094/1:2003.

Power supply	110/230 Vac; 50/60 Hz.
Standby current	125 mA max.
Total max. current	2.4 A
Batteries	2 x 7A/h
Battery load current	300 mA max.
Battery fuse	F4AL 250 V (4 A)
2 monitored sounder outputs	2 x 250 mA
2 aux. power supply outputs	2 x 250 mA (resettable and non-resettable)
2 release circuits	1 A max. each circuit
Operating temperature	-5 °C to +40 °C
Operating humidity	95% max. RH Panel sealing: IP30
Dimensions	W: 381 mm H: 353 mm D: 123 mm
Weight (without/with batteries)	4 Kg / 9.3 Kg
Plug-in Terminals	2,5 mm2 max.
Housing Colour	RAL 7021
Material	ABS V0

VSN-232 RS-232 communication module
VSN-4REL 4-relay module
TFT-SUPRA TFT 4.3" EXTING. RP1r-2Plus/Supra
RP1R-RPT REPEATER PANEL FOR EXTING. RP1R
VSN-485 RS485 card for RP1R-RPT
TG-BASE Dongle with TG w/o license
TGP-C GRAPHIC SOFT License for conventional panels RP1r, VSN-2Plus

Type	Name	Size
Promotional - Product Data Sheets
	Data sheet_ES_HC_41003-02-6_ESS-RP1r-Plus_EN	642 KB
	Data sheet_ES_HC_41003-02-6_ESS-RP1r-Plus_HR	519 KB
	Data sheet_ES_HC_41003-02-6_ESS-RP1r-Plus_HU	2 MB
	Data sheet_ES_HC_41003-02-6_ESS-RP1r-Plus_SL	514 KB
	Data sheet_ES_HC_41003-02-6_ESS-RP1r-Plus_SR	520 KB
	Data sheet_HLSI-HC-TG_SQL_EN	290 KB
	Data sheet_RACK_SUPRA_EN	426 KB
