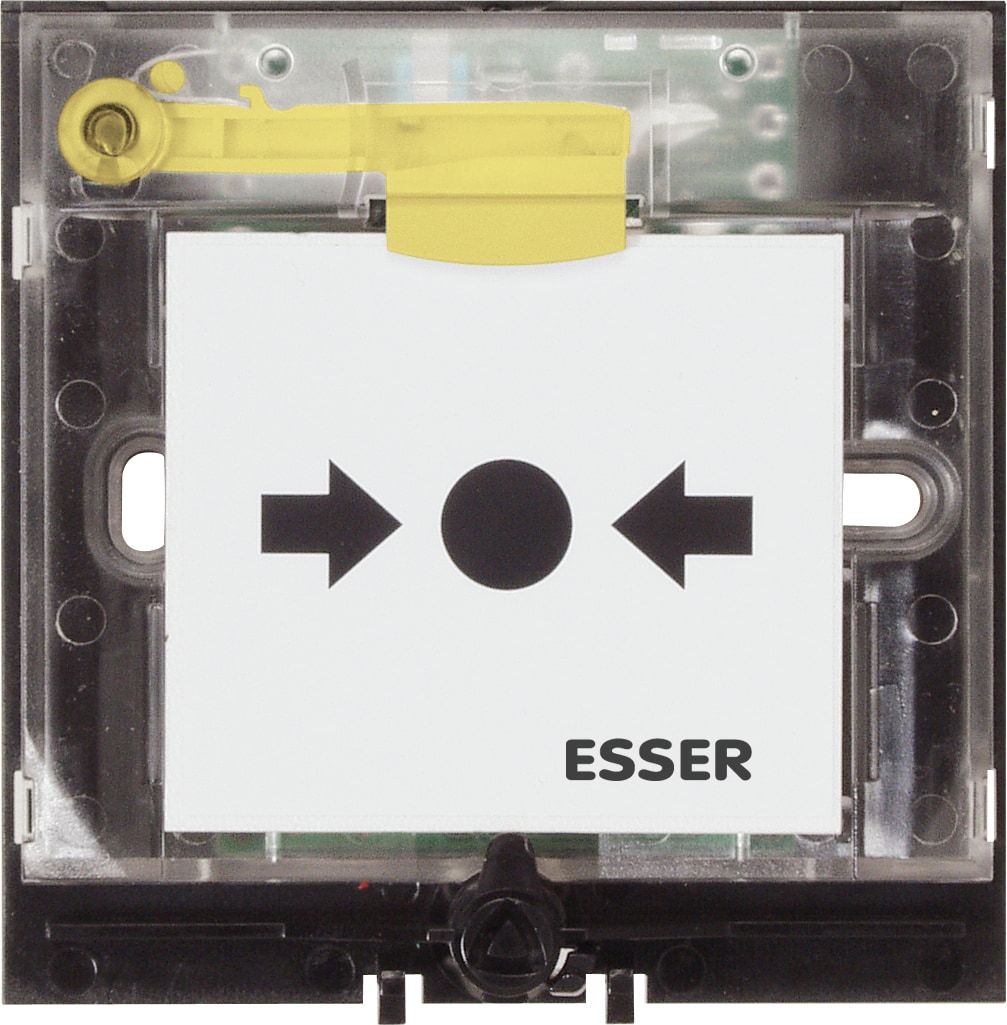

IQ8MCP electronic module

804955

Approval: VdS

Same as 804971, but without housing.

Features & Benefits
Technical Data
Accessories
Documents

Scope of Delivery:
1 x Glass pane 704960
1 x Multilingual paper labels with "Out of order" pictogram

Alarm display	red LED and yellow actuation indicator
Alarm current w/o communication curtain	approx. 18 mA
Connection terminal	max. 2.5 mm² (AWG 26-14)
Application temperature	-20 °C ... 70 °C
Operation indicator	LED, green
Operating voltage	8 ... 42 V DC
Weight g	approx. 78 g
Storage temperature	-30 °C ... 75 °C
No. of detector/zone	max. 127 detectors per loop (as per VdS)
Detector specification	EN 54-11, type A
Air humidity	< 95 % (non-condensing)
Quiescent current @ 19 V DC	approx. 45 μA
Type of protection	IP43 (in housing), IP 55 with cover 704965
VdS class	F
VdS-Nr	G 205132
Dimensions	W: 88 mm H: 88 mm D: 21 mm
Declaration of Performance	DoP-20492130701
