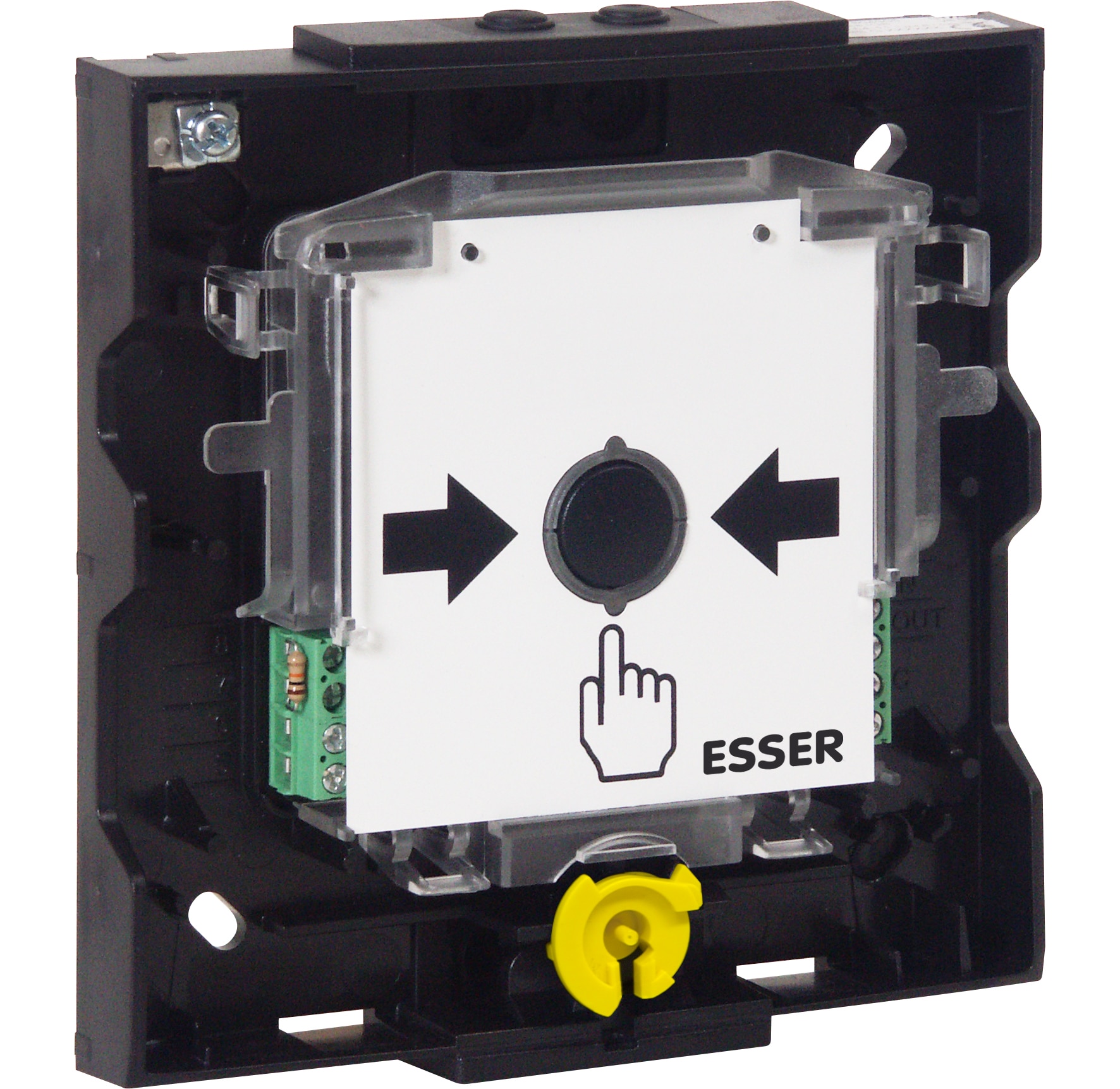

IQ8MCP electronic module with isolator

804905

Approval: VdS, CNBOP

Addressable electronic module suitable for use in the esserbus and powered loop with alarm latch and alarm indicator. Optional connection for conventional manual call point. Without BUS connection, the detector operates as conventional manual call point. Built-in loop isolator in the manual call point.

CNBOP certificate valid only with additional “Fire” sign available as option (Part No. 704911).

Additional Information:
Take note, for a LARGE MCP you have to order the electronic module and the MCP housing separately to have a complete MCP.

Alarm display	LED, red
Alarm current w/o communication curtain	approx. 18 mA
Connection terminal	max. 2.5 mm² (AWG 26-14)
Application temperature	-20 °C ... 70 °C
Operation indicator	LED, green
Operating voltage	8 ... 42 V DC
Housing	PC ASA plastic
Weight g	approx. 236 g (in housing)
Storage temperature	-30 °C ... 75 °C
No. of detector/zone	10 detectors per zone, 127 detectors/loop (according to VdS)
Detector specification	EN 54-11, type B
Air humidity	< 95 % (non-condensing)
Quiescent current @ 19 V DC	approx. 45 μA
Type of protection	IP44 (in housing), IP55 (with accessory)
VdS class	F
VdS-Nr	G 205002
Dimensions	W: 133 mm H: 133 mm D: 36 mm

Type	Name	Size
Declaration of Performance
	DoP-IQ8mcp Bus Detector manual call point_804905_07.2013	2 MB
