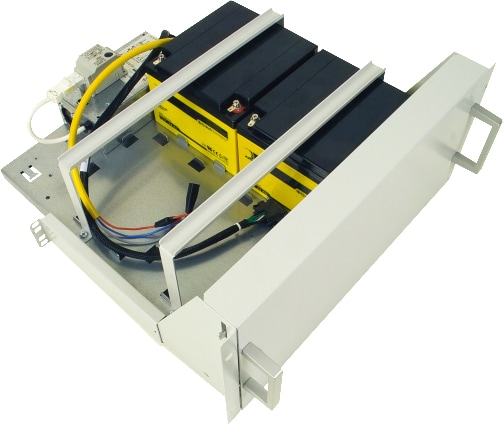

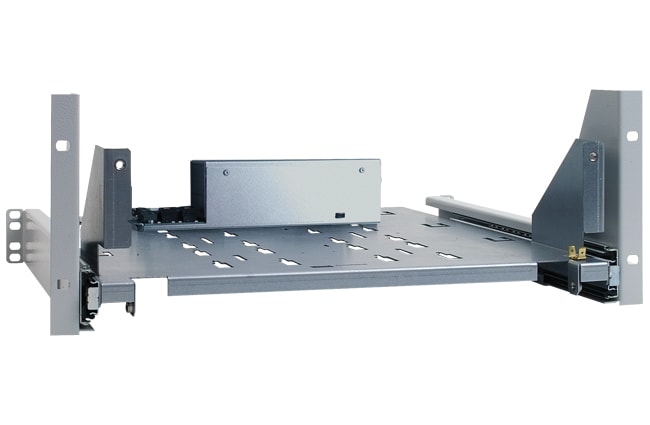

Heavy-duty drawer with power supply unit, 5 HU

FX808431

Heavy-duty drawer on ball-bearing metal rails with power supply module and space for up to four batteries 12 V / 26 Ah.

Additional Information:

Dummy cover (Part No. FX808440) must be ordered separately.

Scope of Delivery:
1 x Mains adapter connection cable
2 x Battery connection cables
2 x Fasteners
1 x Power supply module (PSM) FX808326, 24 V DC / 150 W with PSM connector cable
1 x Power supply connection (PSC) FX808327

Rated voltage	230 V AC
Rated frequency	50 ... 60 Hz
Rated current	0.8 A
Output voltage	24 V DC
Output current	max.6 A
Current consumption for ext. devices	3 A
Battery capacity	2 x 12 V / 26 Ah (max. 4 x 12 V 26 Ah)
Color	gray, similar to Pantone 538
Housing	ABS, 10 % glass fiber reinforced, V - 0
Weight kg	approx. 10.3 kg
Storage temperature	-10 °C ... 50 °C
Type of protection	IP30
Ambient temperature	-5 °C ... 45 °C
Dimensions	W: 450 mm H: 640 mm D: 185 mm
